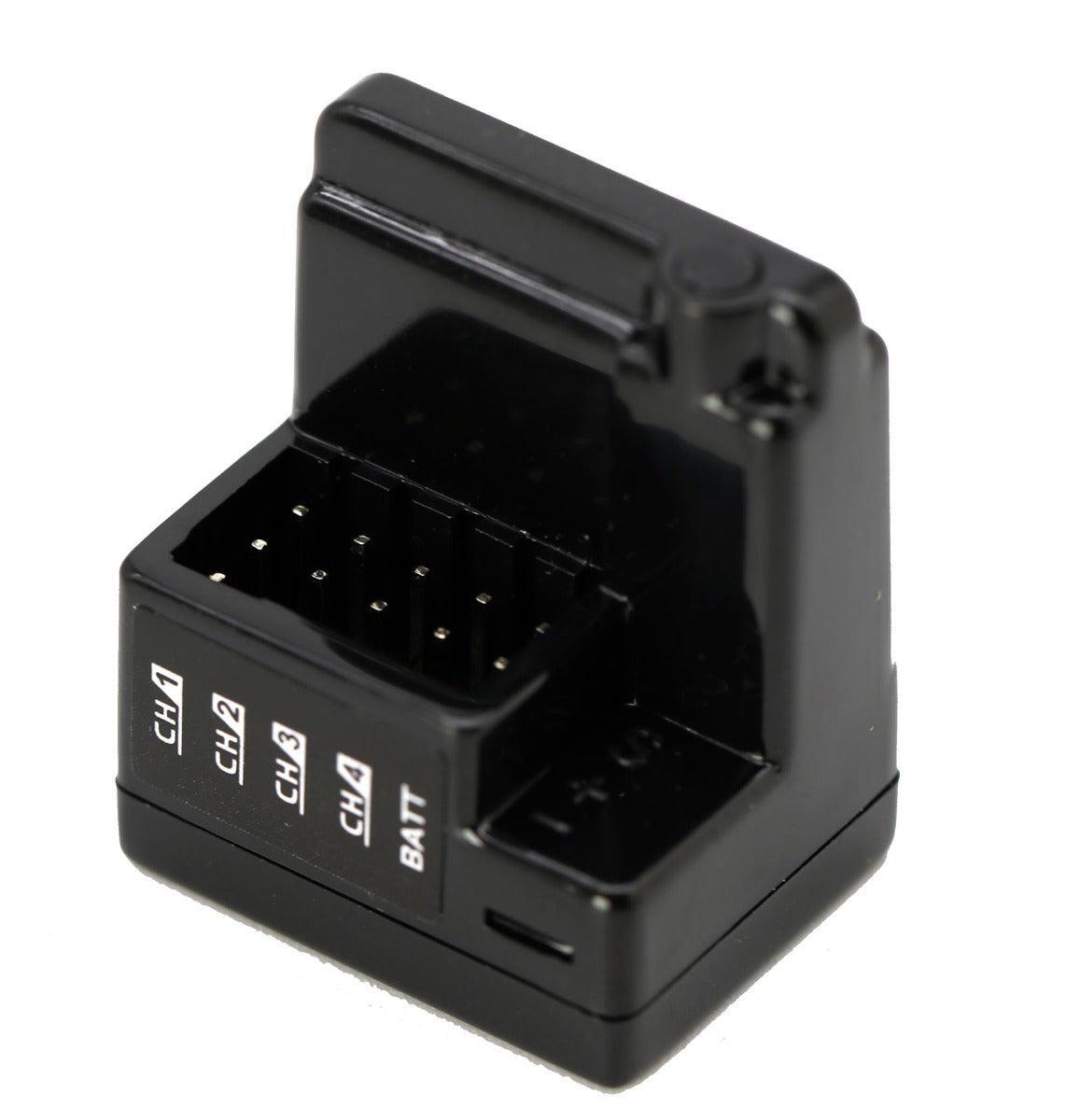

Powerhobby ARX-482R 4-Channel Receiver: Airtronics M12 M11X MT-4

Powerhobby ARX-482R 4-Channel Receiver: Airtronics M12 M11X MT-4 MT-4S M12S Item #: PHBPHARX482R Item Condition: Brand New in Factory Packaging Manufacturer: PowerHobby Warranty: Full Manufacturer Warranty. Authorized Dealer Shipping Time: In Stock Ships Within 24hrs
Item Description Powerhobby ARX-482R 4-Channel Rciever Compatible w SANWA / Airtronics

Operating Voltage：3.5V～8.4V
Dimension：23.6×18.4×28.4mm
Weight：7.3g
No. Of Channels：4CH
PWM Mode：Normal/ SHR/ SSR



Compatibility
Compatible with SANWA FH3/FH4T remote control system.

Suitable for remote control M12, M11X, EXZES X, MT-4, GEMINI X, MT-S, MT-4S, M12S, M17.

Feature

1) Bidirectional communication system, monitor the receiver voltage by transmitter in real time;

2) Compatible stabilizing voltage, operating voltage can up to 1-2s lipo, sudden low voltage won’t be

out of control;

3) High sensitivity built-in antenna, full 4CH output + BAT port suitable for all kinds of remote control cars, simulation rock crawlers.

4) L-shape design, small size to save more space for rc car.



Bind Procedure

1) Turn on the transmitter, get to the SYSTEM menu and select BIND;

2) Pressing the "SET" button of receiver and power on, the LED on the receiver will flash slowly. Press and hold the “SET” button for 2 seconds then release, the LED on the receiver will keep flashing slowly;

3) Select BIND menu in the transmitter and press ENTER while the LED on the receiver is flashing slowly. The LED will be off immediately.

4) Press ENTER again on the transmitter, the LED will be solid, indicating binding process is successful;

5) Please repeat the above procedure if binding is failed.

LED Status

Blue       LED Status
Sold      Receiving Singnals
Blick      Binding MOde
OFF       No Signal Reception
